Build a chat Agent in Canvas: a trigger that receives the message, a model that thinks, and a response that streams back. Ten minutes, no code.

​
Before you begin

The platform is running (unoverse dev) and Canvas is open at http://localhost:3001. You have an OpenAI API key, and the OpenAI package is installed from the marketplace.

​
Build it

1

Add your OpenAI credential

In Canvas, open Credentials and click New credential. Select the OpenAI API type, name it, paste your API key, and save. Nodes never read keys from config or env files; they request credentials at execution time, decrypted and injected by the platform.The Credentials page in Canvas
2

Create a workflow

Click Create New Workflow and name it. An empty Canvas opens.
3

Add three nodes

The workflow needs three nodes:
  1. Input Trigger receives the user’s message.
  2. OpenAI Stream sends it to the model and streams the reply.
  3. Streaming Text displays the reply to the user.

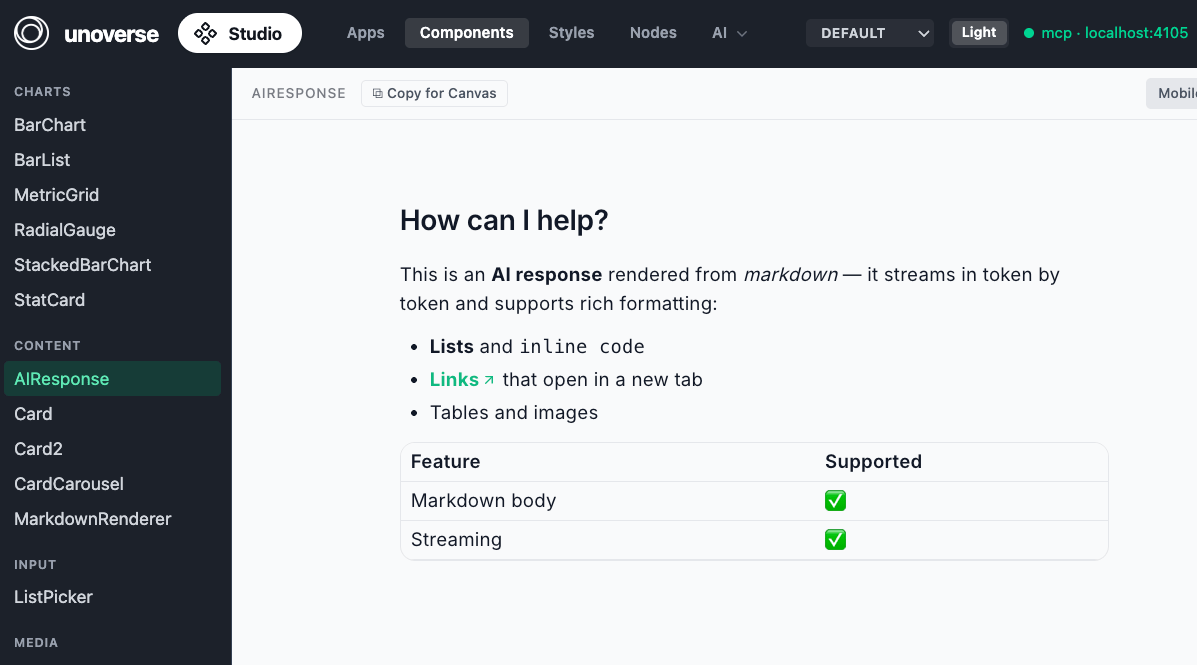

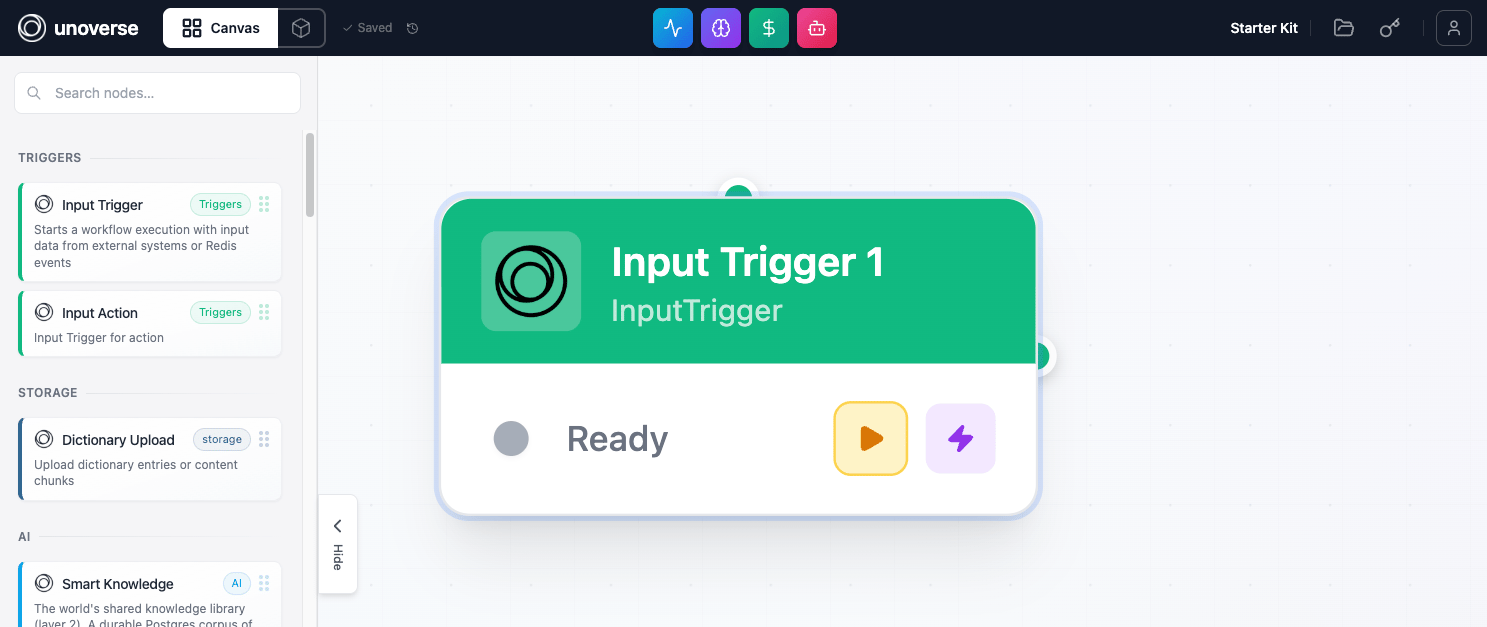

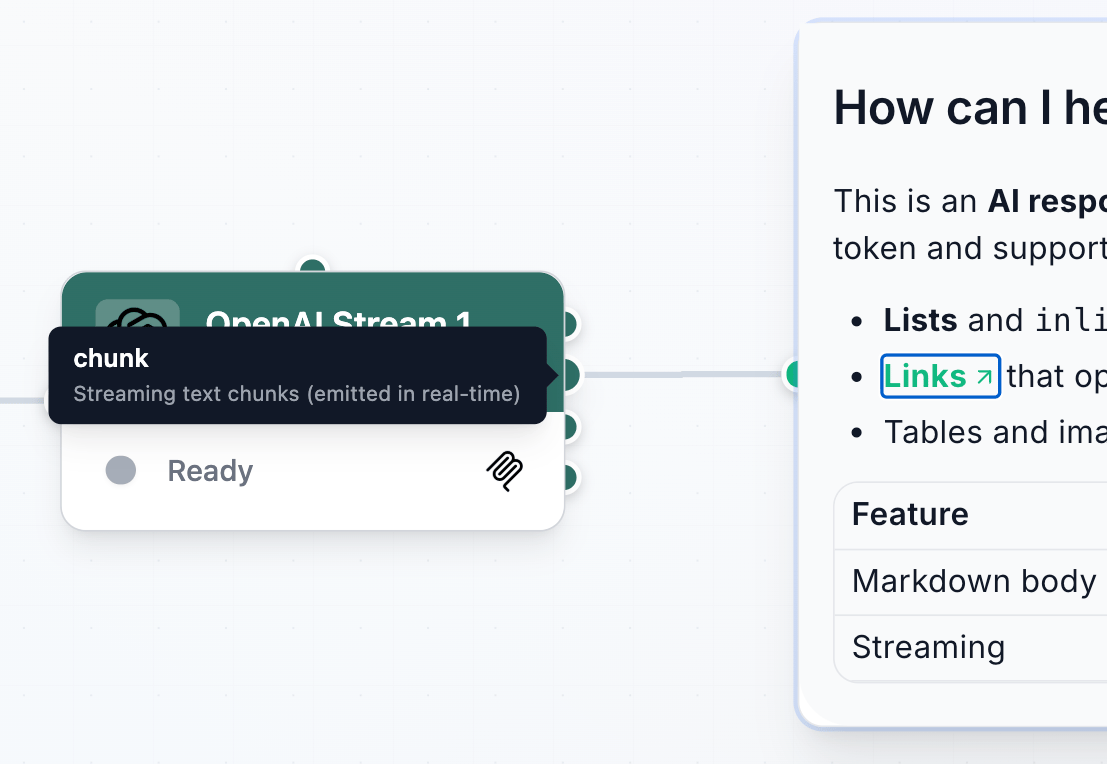

Drag Input Trigger and OpenAI Stream from the node library onto the Canvas.An Input Trigger node on the canvasStreaming Text is a component, so it comes from Studio. Open Components in Studio, select StreamingText, and click Copy for Canvas. Then paste it into your Canvas.The StreamingText component in Studio with Copy for CanvasNow connect them left to right: Input Trigger β†’ OpenAI Stream β†’ Streaming Text.The dots on a node’s edges are connectors. Each output connector carries one named signal. Hover over a connector to see its name and what it carries. The names matter: they are how downstream fields reference the data, as in signal.openaistream1.stream.OpenAI Stream has more than one output, so pick the right one: connect from its stream connector. stream carries the live text, so the reply flows into Streaming Text as the model writes it.Hovering a connector shows its name and what it carries
Every node instance gets an id: its type, lowercased, plus a number. Your three nodes are inputtrigger1, openaistream1, and airesponse1. Downstream nodes read upstream outputs through these ids: signal.<nodeId>.<output>.
4

Set a test message

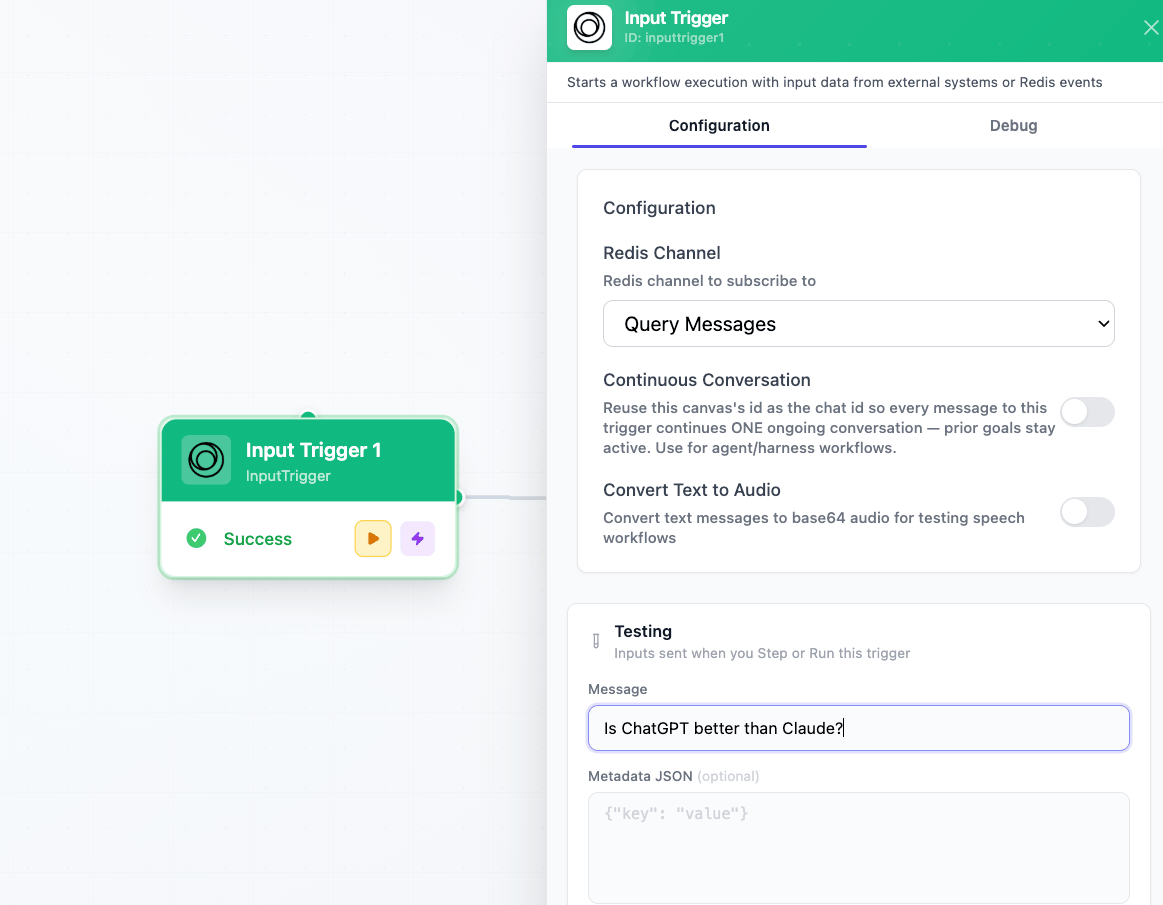

Double-click Input Trigger to open its settings. Under Testing, enter a Message. This is the question that kicks off the flow when you run the trigger.Setting a test message on Input Trigger
5

Configure the model

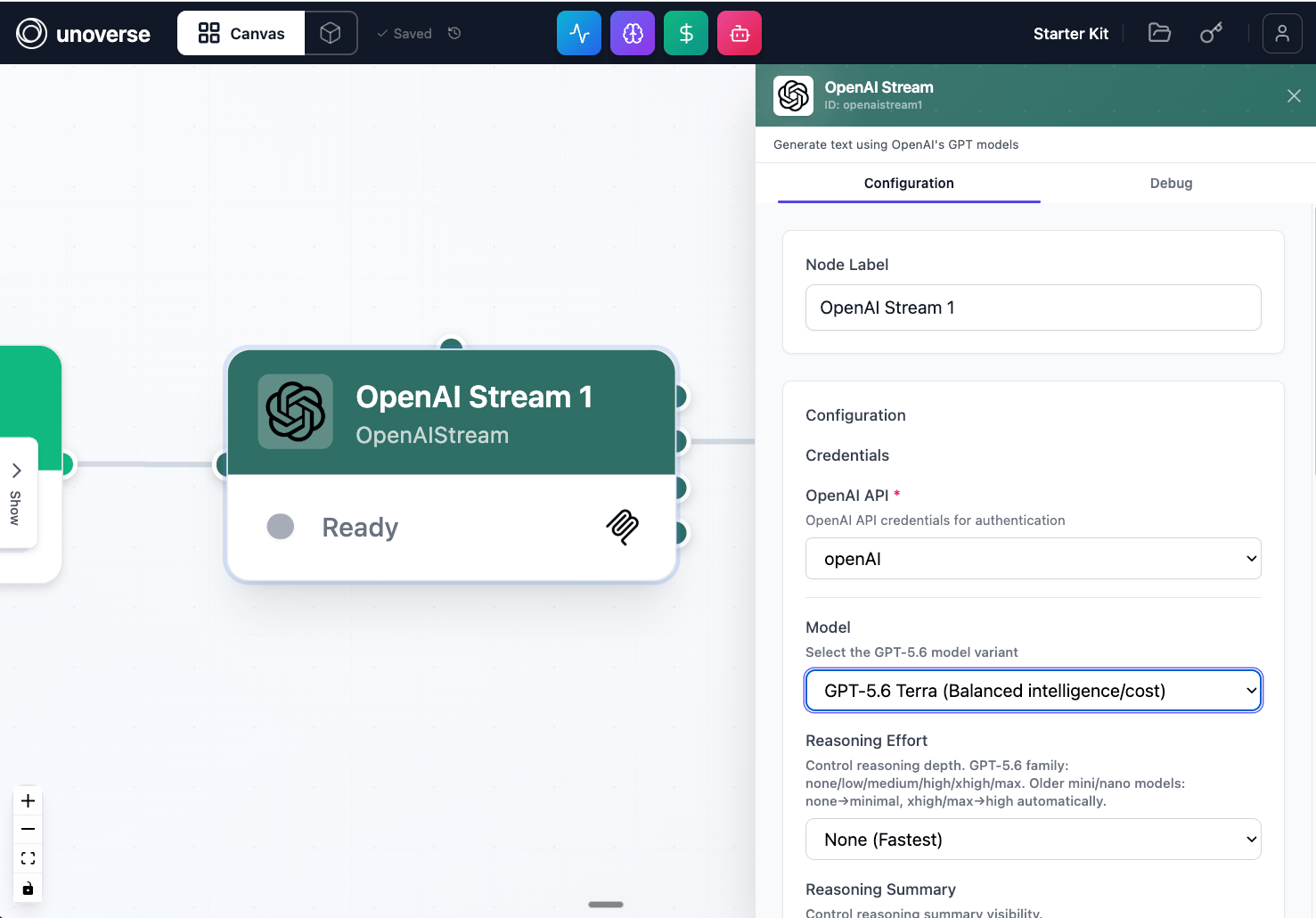

Double-click OpenAI Stream to open its settings:
  • OpenAI API: select the credential you created in step 1.
  • Model: pick a GPT-5.6 variant.
  • System Prompt: You are a helpful assistant. Please answer the user's question.
  • User Prompt: The user's question is {{signal.inputtrigger1.output.message}} The OpenAI Stream settings panel
The double braces are a Handlebars reference: at run time it resolves to the message the trigger received.
6

Configure the response

Double-click Streaming Text:
  • Main response text: return signal.openaistream1.stream
This field takes JavaScript. stream is the model’s streaming output, so text appears live as the model writes. The complete reply is also available as signal.openaistream1.text once the node finishes.
Config fields accept two syntaxes: Handlebars ({{signal...}}) for templating text, and JavaScript (return signal...) for computing a value. Use either; don’t mix them in one field.
7

Step through it

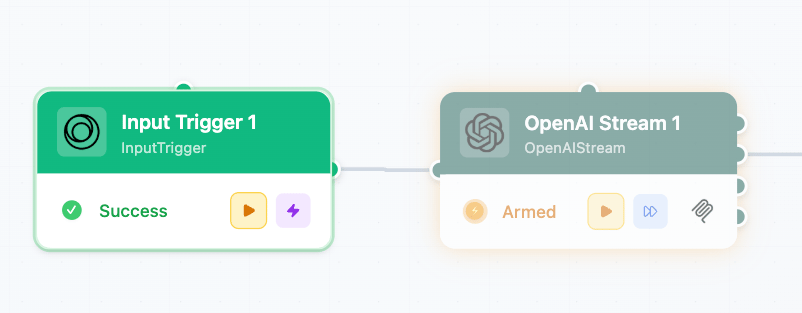

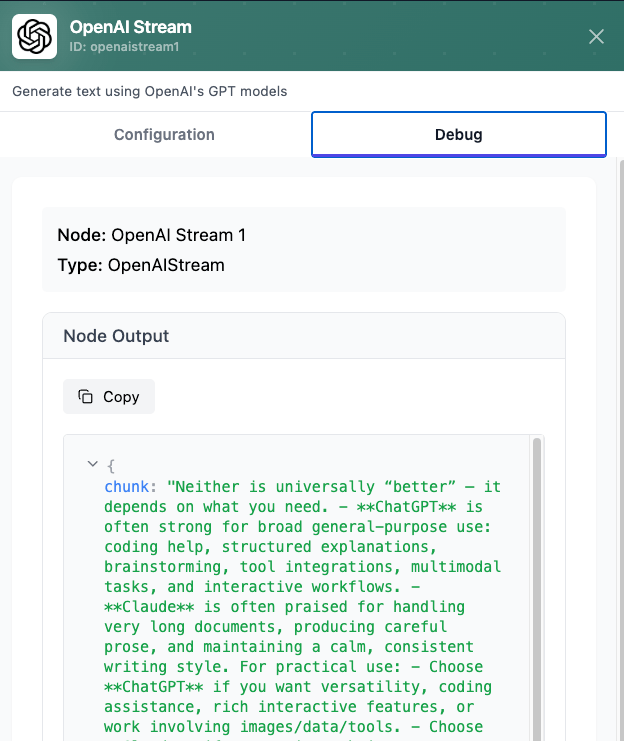

Your workflow saves automatically as you build; there is no save button. Just run it: press the play button on Input Trigger to execute it with your test message. When a node completes, the next node in the chain becomes armed and flashes, meaning it is ready to run. Press its play button to step forward, inspecting each node’s output as you go.Input Trigger completed, OpenAI Stream armed and ready to stepThe moment a node runs, its output is ready to inspect. Double-click the node and open the Debug tab. It shows every signal the node produced and the exact value each one carried on this run.The Debug tab showing OpenAI Stream's outputStep through all three nodes and watch the reply stream into Streaming Text.

​
One more thing

Everything you just built by hand, Claude Code can build for you. The platform ships a builder MCP, registered by this repo’s .mcp.json:
  1. With the platform running, open this repo in Claude Code and approve the unoverse-builder server when it asks. Type /mcp at any time to confirm it shows as connected.
  2. In Canvas, create a new empty workflow and copy the wf-xxxxxx id from the URL.
  3. Ask:
Bind workflow wf-xxxxxx, then build a chat agent: input trigger β†’ OpenAI β†’ response display. Test each stage with runTest before adding the next.
Claude binds to that one Canvas, builds stage by stage, and runs each stage while you watch the nodes appear live. It can’t see or touch any other workflow.

​
Next steps

Create your first node

Extend the platform with your own logic.

Ingest content to Spatial

Ground your Agent’s answers in your own content.
